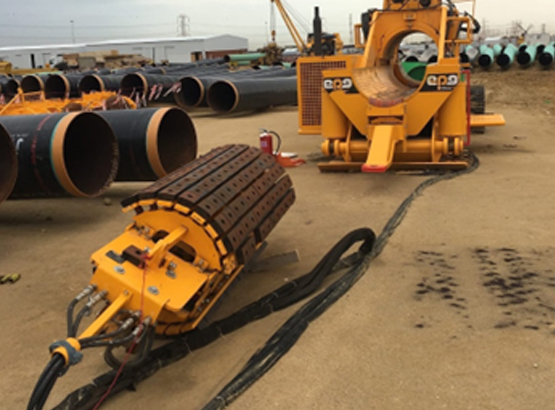

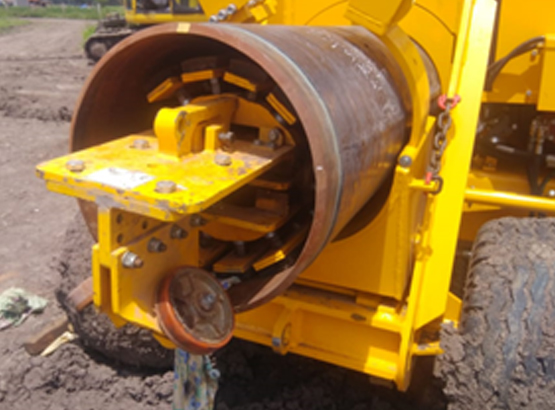

Hydraulic Wedge Mandrel

Hydraulic Wedge Mandrel

Features :

• The Hydraulic Wedge Mandrel is used specifically to meet bending requirements of X65 and higher-grade pipes. Operator controls all functions of the mandrel.
• Helps reduce buckling and out of round in the bend
• Power is provided by the bending machine hydraulic system or by an auxiliary power unit
• Models cover pipe sizes 24″ – 60″
• PIPE RANGES 24″ – 30″ | 30″ – 36″ | 36″ – 42″ | 40″- 48″ | 52″ – 60″
• Fast approach and powerful locking action is provided by double angle hardened steel wedges
• Auxiliary hydraulic power units and conversion kits (within mandrel’s range) available at additional cost
• Non-Powered available 6″ – 20″
• Powered available 12″ – 60″

Specification:- For Pipe up to 60inch

MODEL

PIPE SIZE (in/mm)

LENGTH (in/mm)

WIDTH (in/mm)

HEIGHT (in/mm)

VOLUME (cu-ft/cu-m)

WEIGHT (lbs/kg)

PHWM 6

6 / 152

61 / 1549

6 / 152

6 / 152

1.3 / 0.04

150 / 68

PHWM 8

8 / 203

71 / 1803

8.5 / 216

8.5 / 216

3.0 / 0.08

200 / 91

PHWM 10-12

10-12 / 254-305

88 / 2235

11.5 / 292

11.5 / 292

6.7 / 0.19

564 / 256

PHWM 12-14

12-14 / 305-356

108 / 2743

11 / 279

11 / 279

7.6 / 0.21

680 / 309

PHWM 16

16 / 406

108 / 2743

14 / 356

14 / 356

12.3 / 0.35

754 / 343

PHWM 18-20

18-20 / 457-508

108 / 2743

18 / 457

18 / 457

20.3 / 0.57

820 / 373

PHWM 20-22

20-22 / 508-559

124 / 3150

18 / 457

18 / 457

23.3 / 0.66

950 / 432

PHWM 24-26

24-26 / 610-660

140 / 3556

20 / 508

20 / 508

32.4 / 0.92

2310 / 1050

PHWM 28-30

28-30 / 711-762

140 / 3556

26 / 660

26 / 660

54.8 / 1.55

2700 / 1227

PHWM 30-32

30-32 / 762-813

140 / 3556

27 / 686

27 / 686

59.1 / 1.67

3200 / 1455

PHWM 34-36

34-36 / 864-914

125 / 3175

31 / 787

31 / 787

69.5 / 1.97

4500 / 2045

PHWM 36-38

36-38 / 914-965

160 / 4064

32 / 813

32 / 813

95 / 2.68

5650 / 2568

PHWM 40-42

40-42 / 1016-1067

160 / 4064

38 / 965

38 / 965

134 / 3.79

6350 / 2886

PHWM 42-44

42-44 / 1067-1118

160 / 4064

38 / 965

38 / 965

134 / 3.79

6350 / 2886

PHWM 46-48

46-48 / 1168-1219

150 / 3810

43 / 1092

43 / 1092

161 / 4.54

7000 / 3182

PHWM 52

52 / 1321

186 / 4724

45 / 1143

47 / 1194

228 / 6.45

10000 / 4545

PHWM 56

56 / 1422

186 / 4724

46 / 1168

50 / 1270

248 / 7.01

12000 / 5455

PHWM 60

60 / 1524

186 / 4724

50 / 1270

54 / 1372

291 / 8.23

15000 / 6818
