Internal Pneumatic Lineup Clamps

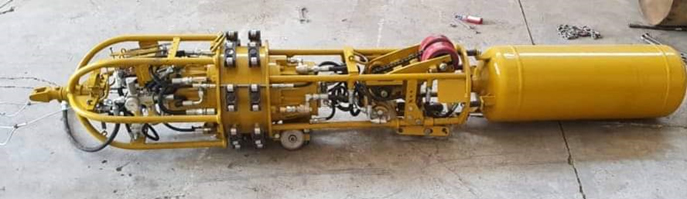

Internal Pneumatic Lineup Clamps

Features:
• Standard sizes 6″-60″, available upon request
• Clamps 12″-60″ will cover two pipe sizes by use of conversion kits
• Adjustable for the various wall thickness within clamp’s range
• Powered travel drives available on models 12″-60″
• For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)
• Maximum safe working pressure in 225 PSI (15.5 Bar)

Technical Specifications: - NON-POWERED CLAMP (PULL TYPE)



MODEL

PIPE SIZE (in/mm)

LENGTH (in/mm)

WIDTH (in/mm)

HEIGHT (in/mm)

VOLUME (cu-ft/cu-m)

WEIGHT (lbs/kg)

IPLC 6

6 / 152

38 / 965

5.5 / 140

6.5 / 165

0.8 / 0.02

98 / 45

IPLC 8

8 / 203

50 / 1270

7.5 / 191

7.5 / 191

1.6 / 0.05

130 / 59

IPLC 10 2-SECTION

10 / 254

58 / 1473

12 / 305

12 / 305

4.8 / .014

178 / 81

IPLC 10 3-SECTION

10 / 254

58 / 1473

12 / 305

12 / 305

4.8 / 0.14

212 / 96

IPLC 12 2-SECTION

12-14 / 324-356

60 / 1524

10.75 / 273

10.75 / 273

4.0 / 0.11

204 / 93

IPLC 12 3-SECTION

12-14 / 324-356

60 / 1524

10.75 / 273

10.75 / 273

4.0 / 0.11

257 / 117

IPLC 14-16

14-16 / 356-406

67 / 1702

13 / 330

13.5 / 343

6.8 / 0.19

225 / 102

IPLC 18-20

18-20 / 457-508

96 / 2438

16.5 / 419

18.5 / 470

17.0 / 0.48

418 / 190

POWERED CLAMP (LINE TRAVEL)



MODEL

PIPE SIZE (in/mm)

LENGTH (in/mm)

WIDTH (in/mm)

HEIGHT (in/mm)

VOLUME (cu-ft/cu-m)

WEIGHT (lbs/kg)

IPLC 10

10 / 254

62 / 1575

10 / 254

11.5 / 292

4.1 / 0.12

300 / 136

IPLC 12-14

12-14 / 305

109 / 2769

10.75 / 273

10.75 / 273

7.3 / 0.21

294 / 133

IPLC 14-16

14-16 / 356-406

112.5 / 2858

15 / 381

15 / 381

14.6 / 0.41

550 / 240

IPLC 16-18

16-18 / 406-457

91 / 2311

13 / 330

13 / 330

8.9 / 0.32

500 / 227

IPLC 20-22

20-22 / 508-559

102 / 2591

18 / 457

18 / 457

19.1 / 0.69

770 / 349

IPLC 24-26

24-26 / 610-660

111 / 2819

21 / 533

21 / 533

28.3 / 1.05

1010 / 458

IPLC 28-30

28-30 / 711-762

115 / 2870

28 / 711

28 / 711

52.2 / 1.45

1290 / 585

IPLC 30-32

30-32 / 762-813

115 / 2870

28 / 711

28 / 711

52.2 / 1.73

1400 / 635

IPLC 34-36

34-36 / 864-914

122 / 3099

34 / 864

35.5 / 902

85.2 / 2.41

1700 / 773

IPLC 36-38

36-38 / 914-965

128 / 3251

36 / 914

37.5 / 953

100.0 / 2.83

1750 / 795

IPLC 40-42

40-42 / 1016-1067

141 / 3581

38 / 965

38 / 965

117.8 / 3.94

3100 / 1406

IPLC 46-48

46-48 / 1168-1219

145 / 3683

45 / 1143

46.5 / 1181

175.6 / 4.97

3140 / 1427

IPLC 52-54

52-54 / 1321-1372

188 / 4775

52 / 1321

53.5 / 1359

302.7 / 8.57

4950 / 2250

IPLC 56

56 / 1422

188 / 4775

54 / 1372

55.5 / 1410

326.1 / 9.23

5400 / 2455

IPLC 60

60 / 1524

191 / 4851

58 / 1473

60 / 1524

384.7 / 10.89

6000 / 2727
