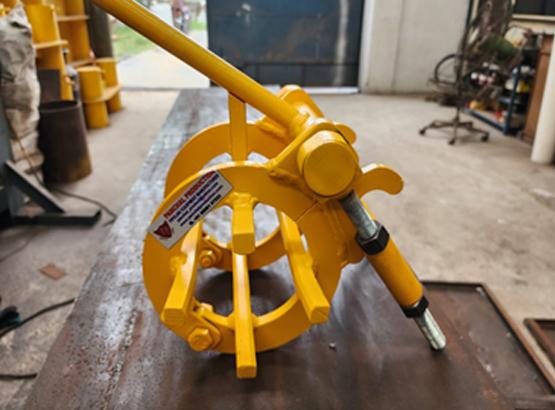

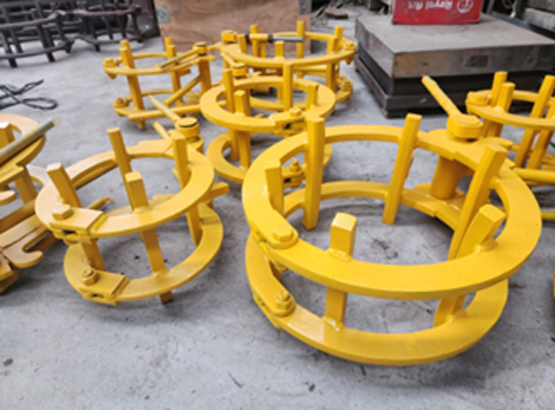

Mechanical External Cage Pipe Clamp

Features:
• Available in standard and no-tack
(arched bar model) • Tightened with hydraulic jack or manually.
• Precision fitted hydraulic line up clamps to insure proper alignment and quick clamping with a convenient hand lever and hydraulic jack for quick line-up of the pipe.
• Easy to align and use.
• Flat cross bar design for all hydraulic standard line-up clamps

Clamping Range: - 02” – 80”

Heavy Duty version for all nominal diameter of External Pipe Centers.

The mechanical external cage clamps are suitable for 02” – 80” and for flush tacking. The pipe ends are clamped via the eccentric by the means of bars.

Model Number	OD mm	OD Inch
EMCC 02	60	2”
EMCC 04	114	4”
EMCC 06	168	6”
EMCC 08	219	8”
EMCC 10	273	10”
EMCC 12	323	12”
EMCC 14	355	14”
EMCC 16	406	16”
EMCC 18	457	18”
EMCC 20	508	20”
EMCC 24	610	24”
EMCC 26	660	26”
EMCC 28	711	28”
EMCC 30	762	30”
EMCC 32	813	32”
EMCC 34	864	34”
EMCC 36	914	36”
EMCC 40	1016	40”
EMCC 42	1067	42”
EMCC 44	1118	44”
EMCC 48	1219	48”
EMCC 52	1320	52”
EMCC 56	1420	56”
EMCC 60	1520	60”
EMCC 64	1620	64”
EMCC 68	1720	68”
EMCC 72	1829	72”
EMCC 76	1920	76”
EMCC 80	2032	80”
