PIPE PUSHING ROLLERS

Protect Pipe Coating:
Our equipment keeps your piping installation safe while crossing dangerous terrain, like rivers and roads. Its protective coatings reduce drag forces so you can focus on the job at hand with confidence

Worker Safety:
Worker safety is paramount, and our beam clamp rollers heavy materials can be safely maneuverer within a job site – promoting efficiency without compromising the wellbeing of workers.

Increase Loading Speed:
With our beam clamp rollers, the loading process for modular construction pipes can be swift and efficient - ensuring your project is always on track

Model Number	Pipe Range	Rollers	Capacity

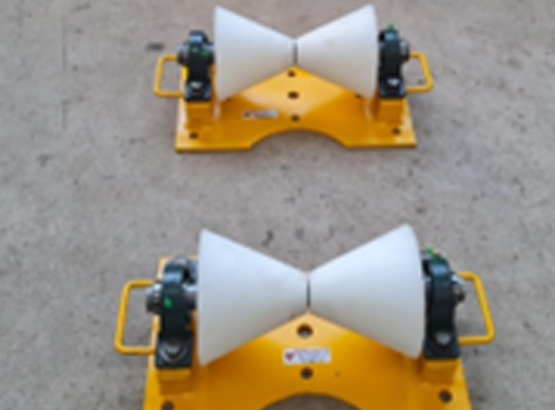

PCPPR – 224	2" – 24"	Cone Type	01 ton
PPRR – 1248	12” - 48”	2 Rollers	05 ton
PPRR – 1248D	12” - 48”	4 Rollers	10 ton
PPRR – 860HD	8” – 60”	4 Rollers	20 ton
PPRR – 472HD6	4" – 72"	6 Rollers	40 ton

Specifications :-

• Replaceable urethane wheels unbolt in seconds.
• Convenient and safe carry handles on both models.
• Beam clamp rigging rollers offer a unique clamping mechanism that fastens to I-beams safely and quickly.

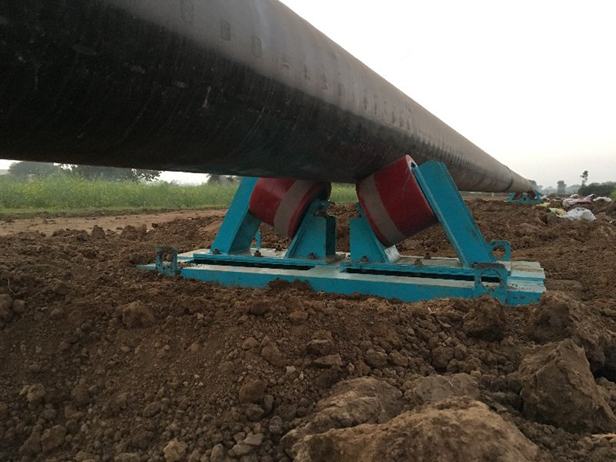

• When mounted to a stand, the rollers are perfect for pipeline construction and directional drilling.
• They also nest and stack efficiently for shipping!
• Great for rental fleets. Beam rollers to launchers and vice versa in seconds.
