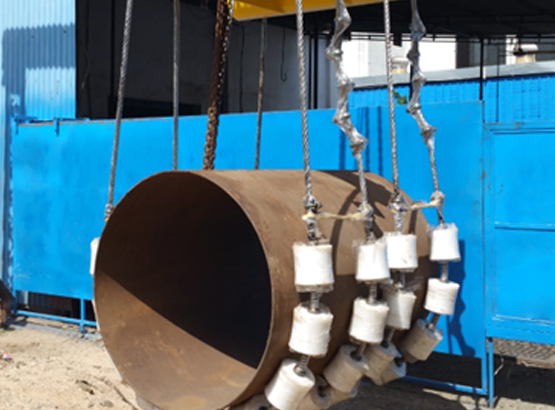

PIPE ROLLER CRADLE & SLING

Design Features :

• Various cradle assemblies for pipe sizes 6" (152mm) through 60" (1524mm) welded seam hang-up
• Slings for pipe sizes 2" (51mm) through 24" (610 mm)
• Designed load capacity ensures safe handling of heavy wall pipe

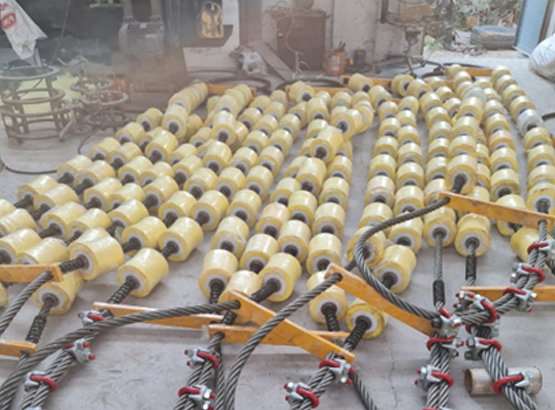

• Multiple urethane rollers spaced to support the pipe evenly

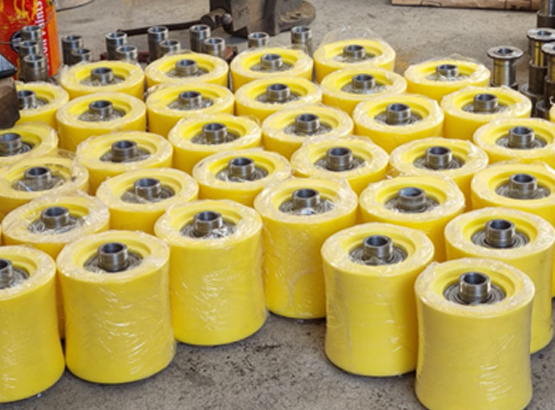

• Replacement cradle rollers available
• Custom sizes available upon request.
• We use springs between rollers which allows rollers to align themselves depending on the load, and reduces cable wear. Some competitors use pipe or cable clamps.

Caution:-

• Roller Cradles & Slings designed for vertical lifting only
• Never stand under a pipe when lifting or loading
• Uneven load distribution imposes disproportionate loading on the individual sling legs

Specification:- For Pipe up to 60inch

Double Head Roller Cradle
Model	Range		No. of Rollers	Capacity
	in	mm		Lbs.	Tons.
PPRC 6-12D	06”- 12”	152 – 305	20	16,923	8.5
PPRC 12-24D	12”- 24”	305 – 610	24	26,662	13.3
PPRC 24-36D	24”- 36”	610 - 914	28	56,500	28.25
PPRC 36-48D	36”- 48”	914 – 1219	32	69,389	35
PPRC 48-60D	48”- 60”	1219 - 1524	36	1,05,380	52

Note: Single cradle has 1 cable strand looped over the head iron Dual cradle has 2 cable strands looped over the head iron

Single Head Roller Cradle
Model	Range		No. of Rollers	Capacity
	in	mm		Lbs.	Tons.
PPRC 6-12S	06”- 12”	152 – 305	10	12,000	6
PPRC 12-24S	12”- 24”	305 – 610	12	13,331	6.6
PPRC 24-36S	24”- 36”	610 - 914	14	28,250	14.1
PPRC 36-48S	36”- 48”	914 – 1219	16	34,694.5	17.3
PPRC 48-60S	48”- 60”	1219 - 1524	18	52,690	26.3

SLINGS

Size	Number of Roller	Capacity
in		Lbs.	Tons.
02” – 08”	3	15,600	7.8
08” – 12”	5	15,600	7.8
12” – 24”	7	15,600	7.8

Note :- Slings are not intended to replace Roller Cradles for lifting pipe, Consult factory for usage guidelines.
